• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1958/1959

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 85012

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECL82 ECL82 PCC84 PCF80 EF80 PCL84 PCL82

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Trilogie 853 51470 - Schaub und Schaub-Lorenz

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1190 x 930 x 540 mm / 46.9 x 36.6 x 21.3 inch

• Notes
• Fernseh-Chassis = Weltspiegel 853;
  Rundfunk-Chassis = Westminster;
  Phono-Chassis = Perpetuum-Ebner Rex de Luxe.

• Net weight (2.2 lb = 1 kg)
• 91 kg / 200 lb 7 oz (200.441 lb)

• Price in first year of sale
• 1,995.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

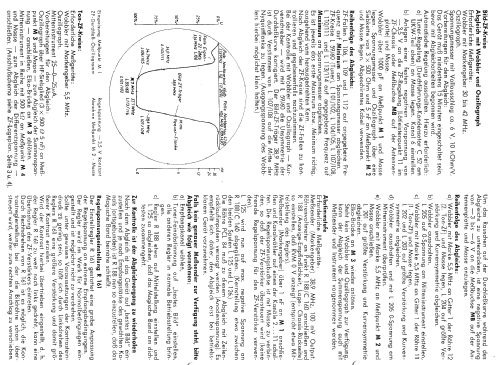

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Alexander Jordan. See "Data change" for further contributors.
