• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1965/1966

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 111851

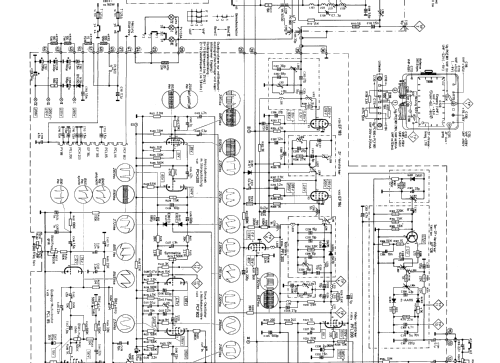

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EMM803 ECC83 ECLL800 ECLL800 PC900 PCF801 EF183 EF184 PFL200 PCH200 PCF802 PL500 PY88 DY86 PCL85 PCL86 A65-11W

• Number of Transistors
• 7

• Semiconductors
• AC125 AC125 AC125 AC125 AF139 AF139 AF126

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Trilogie 6065S 43194 Ch= 6030 - Schaub und Schaub-Lorenz

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1360 x 920 x 420 mm / 53.5 x 36.2 x 16.5 inch

• Notes

• Schaub-Lorenz, Trilogie 6065S Typ 43194

  Fernseh-Chassis = Weltrevue 6059, jedoch mit 65-cm-Bildröhre;
  Rundfunk-Chassis mit 8 Röhren, 6/10 Kreise, LMKU, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 8 W;
  Phono-Chassis = Dual 1011.

  Die kabelgebundene Fernbedienung typ 94400 enthält vier Einstellregler für Lautstärke, Helligkeit, Ton (Ein / Aus) und Bildkontrast.

  Entspricht Trilogie 65.

• Net weight (2.2 lb = 1 kg)
• 72 kg / 158 lb 9.4 oz (158.59 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
