• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1957/1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 99787

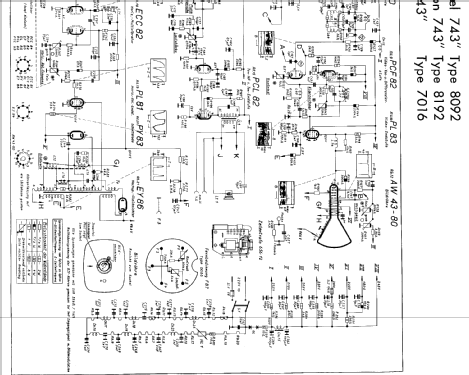

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 EF80 PCF82 PL83 EF94 EF94 PCL82 PCC85 ECC81 PCL82 ECC82 PL81 PY83 EY86 AW43-80 ECC85 ECH81 EF93 EABC80 EM85 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Trilogie 743 7016, Fs-Ch= 8292, Rdf.-Ch= 3959 - Schaub und Schaub-Lorenz

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1070 x 880 x 505 mm / 42.1 x 34.6 x 19.9 inch

• Notes

• Fernseh-Chassis 8292 = Weltspiegel 743; VHF Band I und III
  Rundfunk-Chassis 3959 = 7 Röhren, 6/11 Kreise, LMKU;
  Phono-Chassis = Perpetuum-Ebner Rex A.

• Net weight (2.2 lb = 1 kg)
• 67.5 kg / 148 lb 10.9 oz (148.678 lb)

• Price in first year of sale
• 1,698.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)

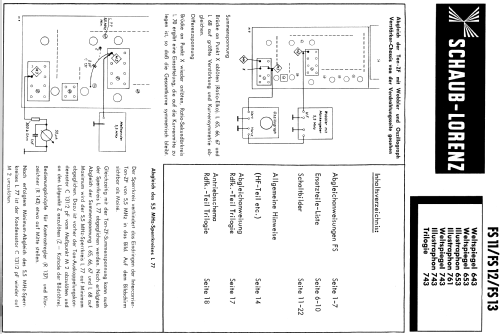

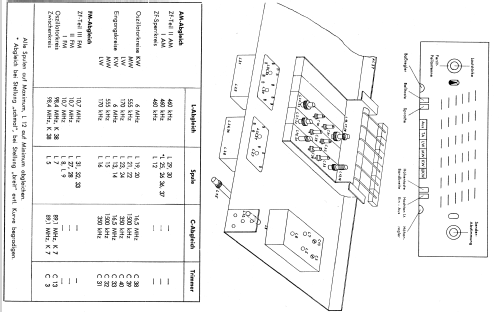

• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
