Viola T 250467
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1967/1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75821
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Viola T 250467 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 365 x 138 x 146 mm / 14.4 x 5.4 x 5.7 inch
- Notes
- Gehäuse: Schleiflack, weiss.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Price in first year of sale
- 219.00 DM
- Source of data
- Handbuch VDRG 1967/1968
- Mentioned in
- Taxliste Franzis Verlag

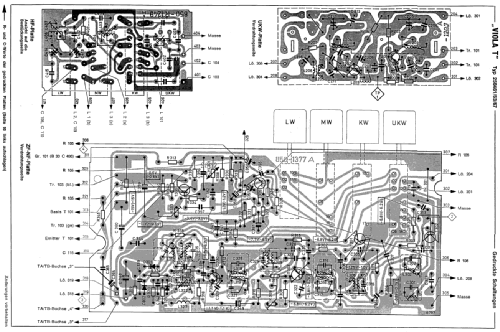

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
