Weltspiegel 3059D 76330/76332/76334/76335

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1962/1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 107606

• Picture

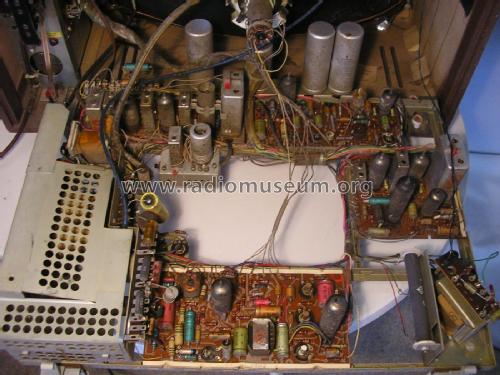

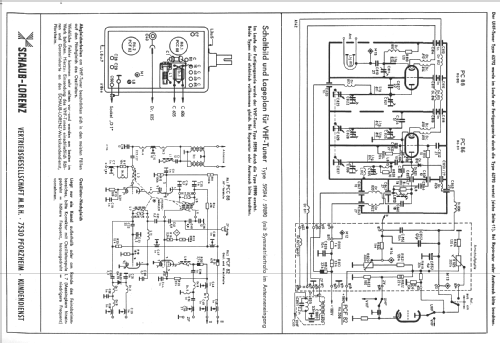

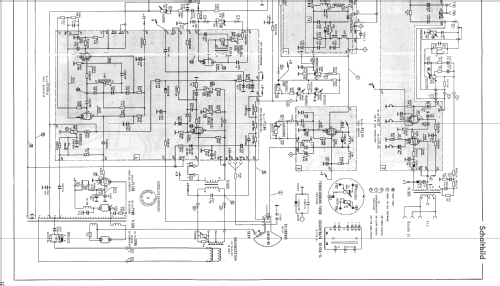

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PC88 PC86 PCC88 PCF82 EF183 EF80 EF80 PCL84 EF80 EF80 EBC91 PL84 PCF82 ECH84a EAA91 PCL85 ECH84a PL500 PY88 DY86 AW59-90

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weltspiegel 3059D 76330/76332/76334/76335 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 490 x 295 mm / 26.4 x 19.3 x 11.6 inch

• Notes

• VHF/UHF; mit Abstimmautomatik.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 1,198.00 DM

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
