• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1955–1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 327336

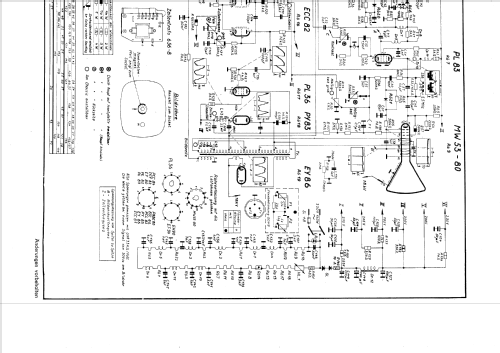

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC84 PCF82 EF80 EF80 EF80 EF80 PL83 EH90 ECC81 PCL82 ECC82 PL36 PY83 EY86 EF94 EF94 PABC80 PL82 MW53-80

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

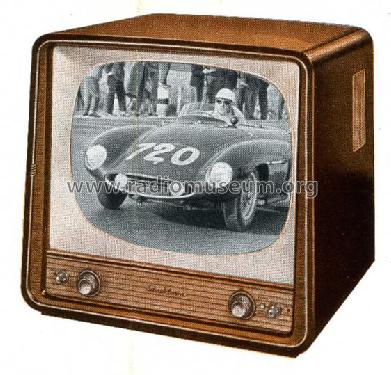

• Model: Weltspiegel 553 8488 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 560 x 610 x 470 mm / 22 x 24 x 18.5 inch

• Notes

• Schaub-Lorenz, Weltspiegel 553 Type 8488

  Kanalwähler für VHF Band I und III

  Die kabelgebundene Fernbedienung Typ 0049 enthält die Bedienelemente zum Einstellen der Lautstärke und des Bildkontrasts.

• Net weight (2.2 lb = 1 kg)
• 36 kg / 79 lb 4.7 oz (79.295 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
