Weltspiegel 843 52030
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1957/1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 153021

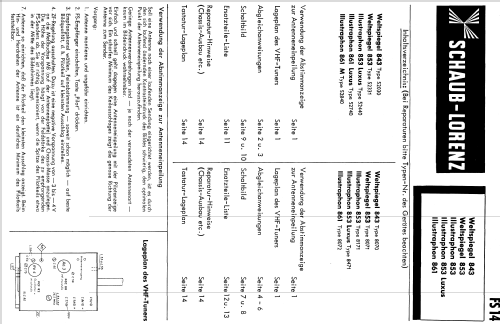

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weltspiegel 843 52030 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 455 x 390 mm / 20.5 x 17.9 x 15.4 inch
- Notes
- VHF 10 Kanäle + 2 Reserve, UHF vorbereitet. Röhren teilweise mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 28 kg / 61 lb 10.8 oz (61.674 lb)
- Price in first year of sale
- 898.00
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
- Author
- Model page created by Enno Janke. See "Data change" for further contributors.
