• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6185

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1834 RENS1854 RENS1823d EUII or EUIV

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Direct Current supply (DC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

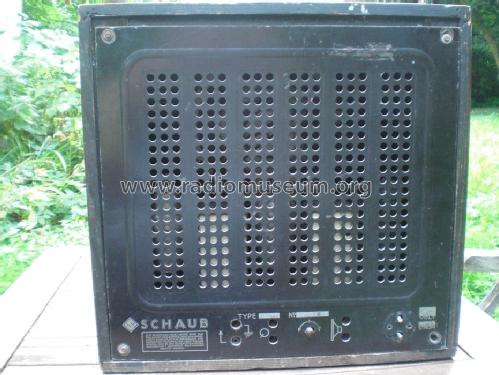

• Model: Weltsuper 34G - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 385 x 400 x 235 mm / 15.2 x 15.7 x 9.3 inch

• Notes

• Variable Bandbreite.

  Preis ohne Röhren, zusätzlich Röhrensatz Preis: 55,- RM

• Price in first year of sale
• 235.00 RM +

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
