Wiking M 231243
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156685
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Wiking M 231243 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 180 x 165 mm / 19.7 x 7.1 x 6.5 inch
- Notes
- Gehäuse dunkel, poliert.
Baugleich mit: Wiking M 231241 (hell, matt). .
- Net weight (2.2 lb = 1 kg)
- 4.7 kg / 10 lb 5.6 oz (10.352 lb)
- Source of data

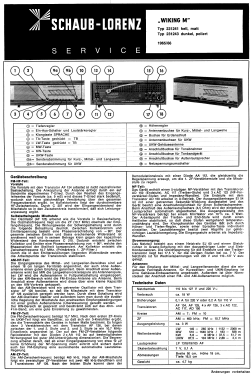

- -- Original-techn. papers.
- Author
- Model page created by Guido Höh. See "Data change" for further contributors.
