WS52

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85481

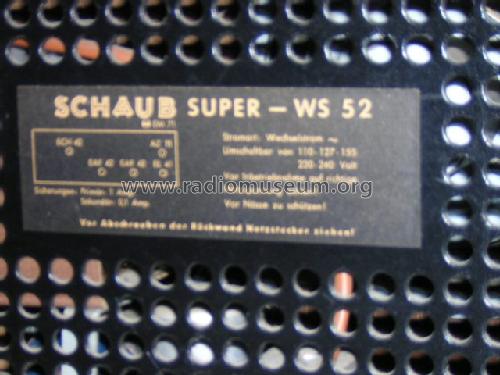

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM71 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Power out
• 3.9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: WS52 - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 600 x 394 x 260 mm / 23.6 x 15.5 x 10.2 inch

• Notes
• je 2× MW und 2× KW.

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
