• Country
• Germany

• Manufacturer / Brand
• Schiemann, Hugo; Berlin

• Year
• 1936–1940

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 75263

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

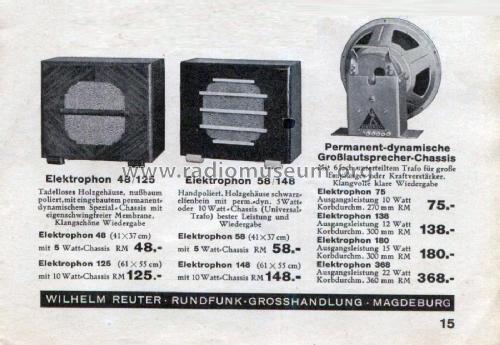

• Model: Elektrophon 125 - Schiemann, Hugo; Berlin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 610 x 550 x 320 mm / 24 x 21.7 x 12.6 inch

• Notes
• Tischlautsprecher im Holzgehäuse mit eingebautem Anpassungstrafo 200/500/1000/2000/4000 Ohm; Spulenimpedanz 3 Ohm; mit Umschalter für Anpassung. Maximalbelastbarkeit: 10 W.

• Net weight (2.2 lb = 1 kg)
• 14.2 kg / 31 lb 4.4 oz (31.278 lb)

• Price in first year of sale
• 125.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.

• Other Models

• Here you find 17 models, 16 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
