Detektor-Empfänger var.1
Schieren, Hans; div. Orte, Deutschland
- Country
- Germany
- Manufacturer / Brand
- Schieren, Hans; div. Orte, Deutschland
- Year
- 1947 ??
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 79041

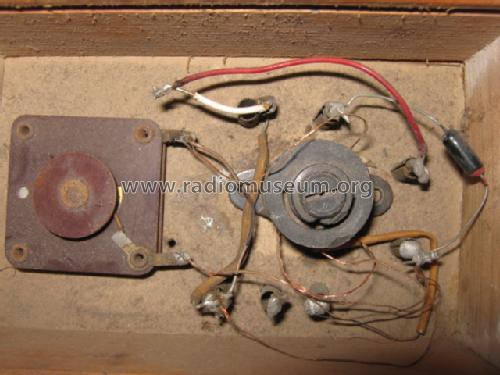

Nachträglich Germanium-Diode eingelötet.
Schieren detektor
Schieren detektor
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Detektor-Empfänger [var.1] - Schieren, Hans; div. Orte,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 85 x 48 x 135 mm / 3.3 x 1.9 x 5.3 inch
- Notes
-
Nachkriegsdetektor mit Kristall. Front und Drehko aus Pappe. Einfaches Holzgehäuse (Fichte) Unten verschlossen mit Pappschieber.
- Net weight (2.2 lb = 1 kg)
- 0.1 kg / 0 lb 3.5 oz (0.22 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
