• Country
• Germany

• Manufacturer / Brand
• Schieren, Hans; div. Orte, Deutschland

• Year
• 1947 ??

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 240056

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Detektor-Empfänger [var.4] - Schieren, Hans; div. Orte,

• Shape
• Tablemodel, with any shape - general.

• Notes

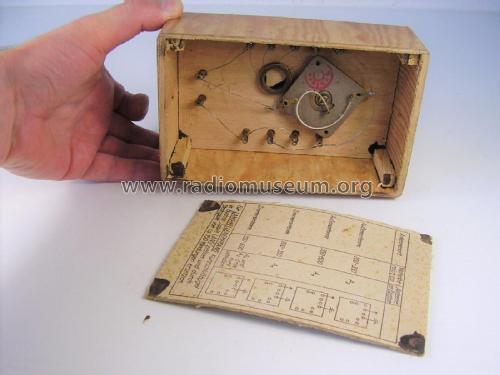

• Nachkriegsdetektor mit Kristall. Einfaches Holzgehäuse (Fichte).

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
