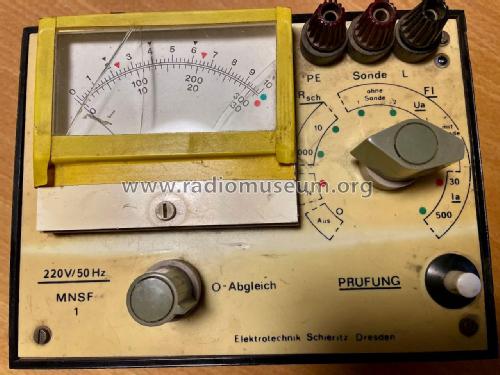

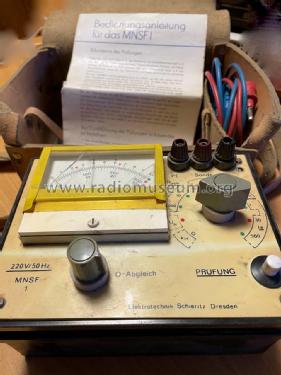

Prüfgerät MNSF1
Schieritz, Peter, Elektrotechnik; Dresden
- Country
- Germany
- Manufacturer / Brand
- Schieritz, Peter, Elektrotechnik; Dresden
- Year
- 1982 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 342993
Manufacturer documentation
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Prüfgerät MNSF1 - Schieritz, Peter,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 179 x 100 x 132 mm / 7 x 3.9 x 5.2 inch
- Notes
-
Prüfgerät für FI- und FU- geschützte Anlagen.
- Messung der Nullung und Schutzerdung
- Ermittlung von Erdungswiderständen
Technische Daten:
- Netzspannung Leiter - Erde 220 V, Nennfrequenz 50 Hz
- Schutzgrad IP 20
- Sicherung im Prüfgerät 2A
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Mentioned in

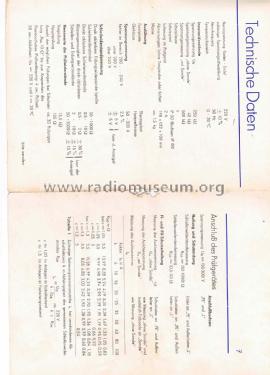

- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
