• Country
• Germany

• Manufacturer / Brand
• Schilling, Walter; Nehren / Tübingen

• Year
• 1971 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 249947

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / DC 12 & 25 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Mischer HS 1000 M - Schilling, Walter; Nehren /

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 100 x 95 x 150 mm / 3.9 x 3.7 x 5.9 inch

• Notes

• Die Baugruppe HS-1000 M ist ähnlich der Baugruppe HS-1000 Mx, jedoch ohne Quarze.

• Mentioned in

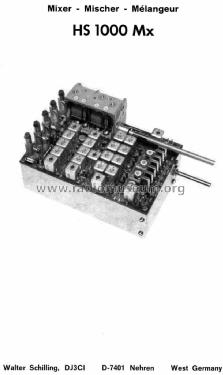

• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
