- Country
- Germany
- Manufacturer / Brand
- Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim
- Year
- 1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 277817

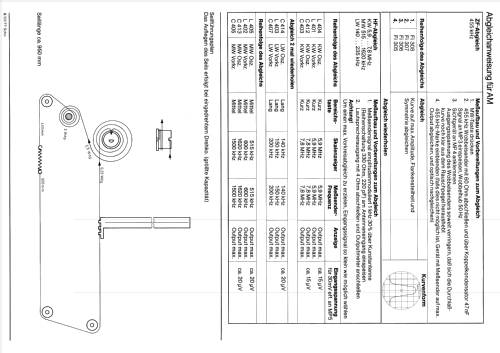

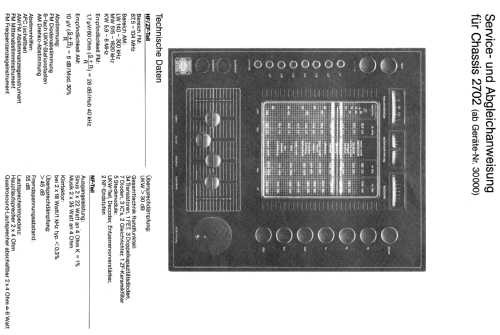

Servicemanual

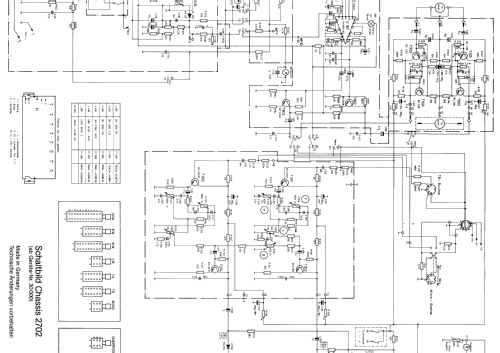

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 44 W (70 W max.)
- from Radiomuseum.org
- Model: Ch= 2702 - Schneider Rundfunkwerke,
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
