• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1988–1991

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 255802

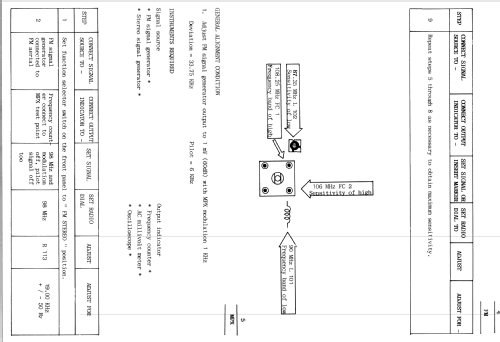

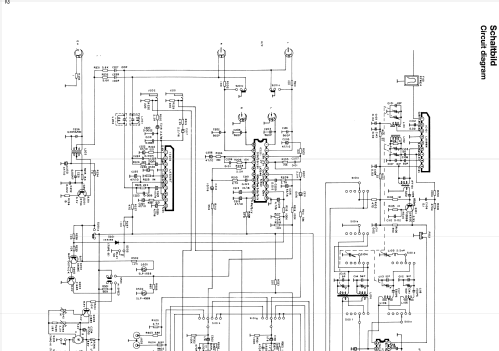

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Midi 2225 Ident - Nr. 42575 - Schneider Rundfunkwerke,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 265 x 350 mm / 13.8 x 10.4 x 13.8 inch

• Notes

• Twin Cassetten Deck & Plattenspieler. Equalizer.
   Ext. CD-In.

  "Wide Range Speaker System" 2-Wege Lautsprecherboxen im Set.

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 158 models, 133 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim
