• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1976 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 139023

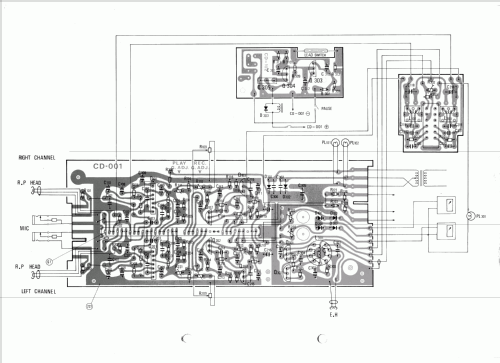

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo Cassetten Tape Deck HVA008 - Schneider Rundfunkwerke,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 130 x 60 x 300 mm / 5.1 x 2.4 x 11.8 inch

• Notes
• Betriebsspannungen: Motor 117 V, NF-Platine: 2x 12,5V. Halbleiterbestückung: 9 Transistoren, 7 Dioden, 2 ICs. Mit Fe-CrO₂.
  Eingebaut in Neckermann 90 Watt Kompaktanlage Multisound 1090CP.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
