- Country
- Germany
- Manufacturer / Brand
- Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin
- Year
- 1929/1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 16947
-
- Brand: Mars
- Number of Tubes
- 6
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

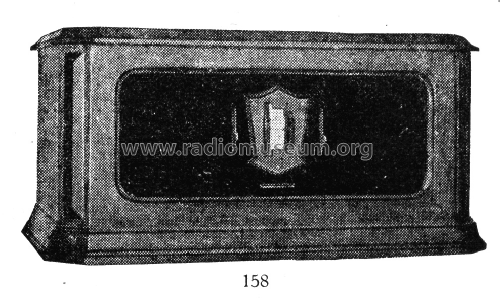

- Model: Herkules - Schneider-Opel AG, Radiowerke;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Fernempfänger mit Schirmgitter-Röhre, Gegentakt-Endstufe. Trommelskala mit Feinstellung, alle Innnenteile abgeschirmt.
- Price in first year of sale
- 434.00 RM !
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
- Mentioned in
- Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)
- Literature/Schematics (1)
- Katalog Radio-Zentrale Prohaska 1929/1930 (S.84/85)
