• Country
• Germany

• Manufacturer / Brand
• Schomandl KG; München

• Year
• 1956 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 75379

• • Brand: Meto

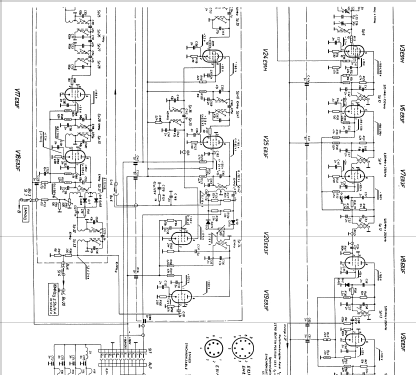

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 43

• Valves / Tubes

• Power type and voltage
• Alternating Current supply (AC) / 110, 117, 127, 150, 220, 235 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Mikrowellen-Frequenzdekade FD 3 - Schomandl KG; München

• Shape
• Rack

• Dimensions (WHD)
• 625 x 920 x 350 mm / 24.6 x 36.2 x 13.8 inch

• Notes
• 300 MHz - 12,6 GHz.

• Net weight (2.2 lb = 1 kg)
• 120 kg / 264 lb 5.1 oz (264.317 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
