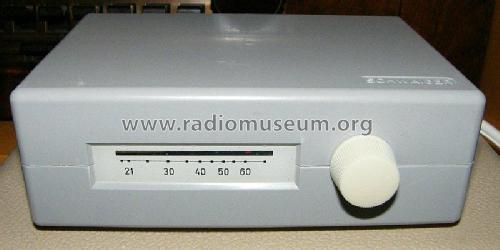

UHF-Verstärker Snow-Master 5570
Schwaiger, Christian; Langenzenn
- Country
- Germany
- Manufacturer / Brand
- Schwaiger, Christian; Langenzenn
- Year
- 1965 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 265631
- Number of Transistors
- 2
- Main principle
- Radio Frequency Amplification only
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: UHF-Verstärker Snow-Master 5570 - Schwaiger, Christian;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 180 x 120 x 60 mm / 7.1 x 4.7 x 2.4 inch
- Notes
-
Schwaiger UHF-Verstärker Snow-Master Type 5570,
Frequenzbereich 470 - 820 MHz, Eingang 240 Ohm, Ausgang 240 Ohm,
Verstärkung ca. 20 dB.
- Author
- Model page created by Manfred Seidel. See "Data change" for further contributors.
