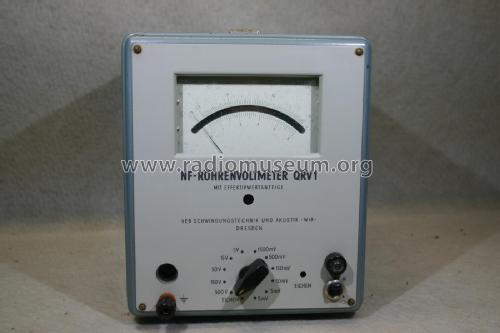

NF-Röhrenvoltmeter QRV1
Schwingungstechnik u. Akustik Dresden, VEB (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Schwingungstechnik u. Akustik Dresden, VEB (Ostd.)
- Year
- 1963
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 277338
- Number of Tubes
- 4
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: NF-Röhrenvoltmeter QRV1 - Schwingungstechnik u. Akustik
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 230 x 190 mm / 11.8 x 9.1 x 7.5 inch
- Notes
-
Röhrenvoltmeter mit Effektivwertanzeige.
11 Messbereiche (5, 15, 50, 150, 500, 1500 mV; 5, 15, 50, 150, 500 V) für Spannungen in den Frequenzbereichen 2 Hz... 100 kHz und 10 Hz... 50 kHz.
- Price in first year of sale
- 1,648.00 Mark
- Mentioned in
- Angebotsliste 1963 "Mess- und Prüfgeräte"
- Author
- Model page created by Uwe Friedl. See "Data change" for further contributors.
