Oscilloscope RM4D-10A
Scopex Instruments; Letchworth, Hertfordshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Scopex Instruments; Letchworth, Hertfordshire
- Year
- 1978 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 346348

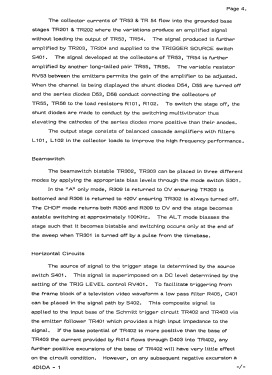

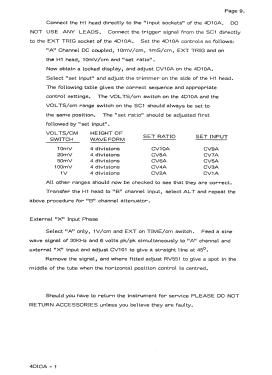

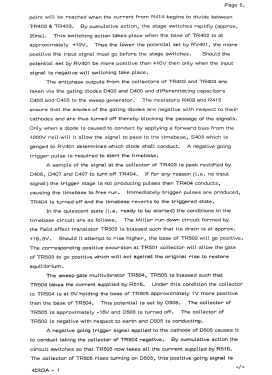

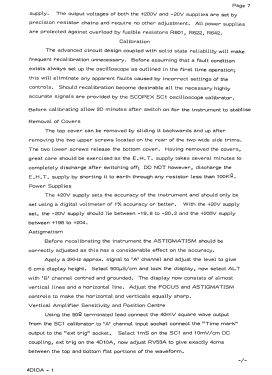

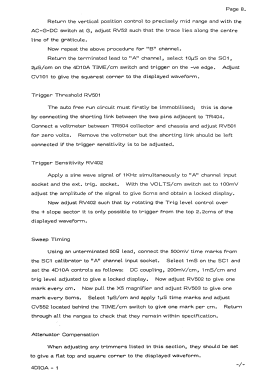

Picture from manual

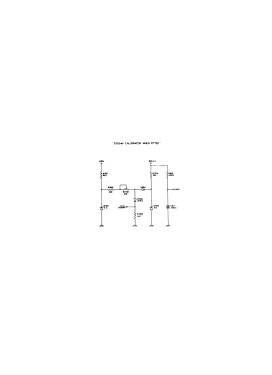

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105; 115; 125; 210; 230; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope RM4D-10A - Scopex Instruments; Letchworth
- Shape
- Rack
- Dimensions (WHD)
- 483 x 178 x 350 mm / 19 x 7 x 13.8 inch
- Notes
-
Scopex Instruments Ltd., oscilloscope RM4D-10A
Bandwidth
- DC 10 MHz
- AC 3Hz - 10 MHz
Rackmounting version of 4D-10A
According to manual: "CRT is supplied by many manufacturers each with different pin connections. When replacing please ensure to state the manufacturers of the type already fitted"
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
