• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1957 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 98498

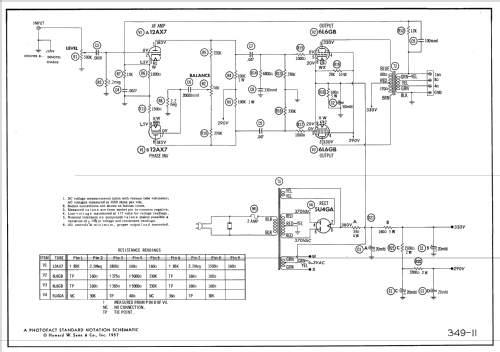

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 6L6GB 6L6GB 5U4GA

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 23 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 223 - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14 x 6.5 x 7.75 inch / 356 x 165 x 197 mm

• Notes
• 23-Watt basic Power Amplifier.

• Price in first year of sale
• 125.00 $

• Mentioned in
• Photofact Folder, Howard W. SAMS (Date 3-57, Set 349, Folder 11)

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
