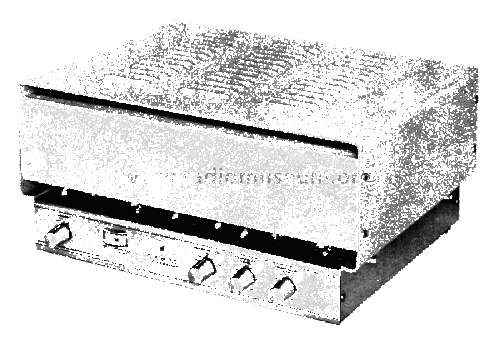

Dual Channel Laboratory Amplifier 290
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1961 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 352914
From Sams folder

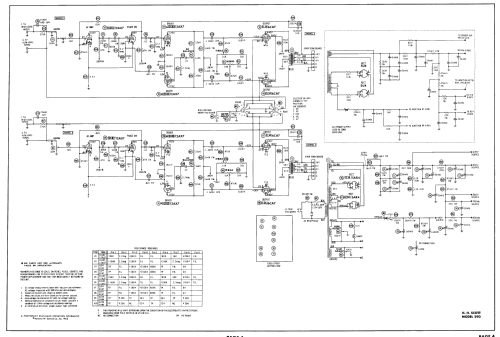

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Dual Channel Laboratory Amplifier 290 - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Notes
-
Stereo Power Amplifer, 50 watts per channel.
Some versions used the 5U4's with additional circuit changes for the power supplies.
