• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1961–1964 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 109737

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 7199 7199 7591 7591 7591 7591 5AR4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (72 W max.)

• Material
• Wooden case

• from Radiomuseum.org

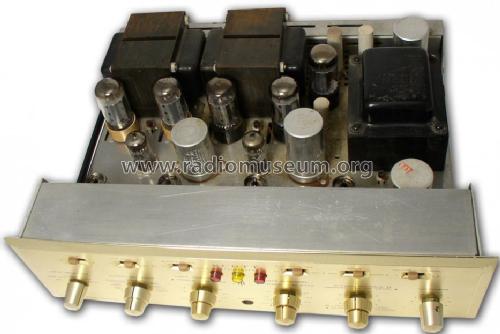

• Model: Stereomaster 299-C [6 switches] - Scott; H.H.; Maynard,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 395 x 127 x 315 mm / 15.6 x 5 x 12.4 inch

• Notes

• Output power 2 x 36 watts continuous. Inputs: mic, phono, tuner, aux.
  potenza di uscita 2 x 36 watt, ingressi per microfono, fono, tuner, aux.

• Price in first year of sale
• 230.00 $

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
