• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148088

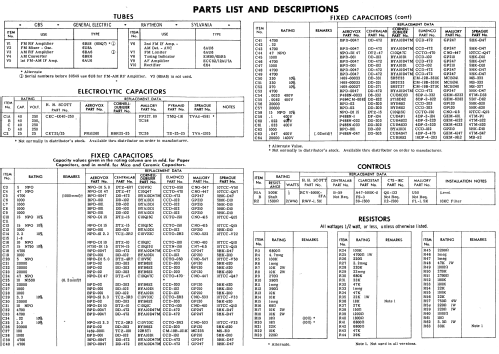

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BS8 6U8A 6BA6 6BE6 EM80 6AU6 6AU6 6AU6 ECC82 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: 320 - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 394 x 133 x 337 mm / 15.5 x 5.2 x 13.3 inch

• Notes
• AC operated AM - FM tuner.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 481 folder 11 date 4-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
