• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144366

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BS8 6U8A 6AU6A 6AU6A 6AU6A 12AU7 6BA6 6BE6 6AU6A 6AL5 12AU7 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM-FM Tuner 330-C [late version] - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Notes

• Independent AM and FM sections for "Simulcast" AM-FM-Stereo; FM Multiplex output.

• Literature/Schematics (1)

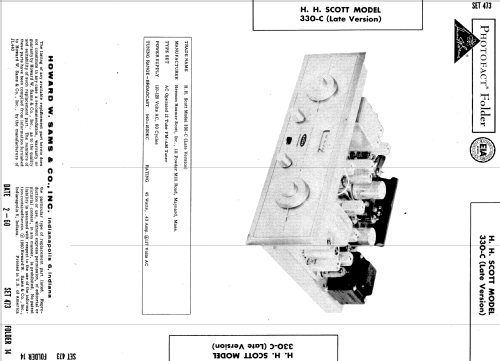

• Photofact Folder, Howard W. SAMS (Set 473 folder 14 date 2-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
