- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 350953

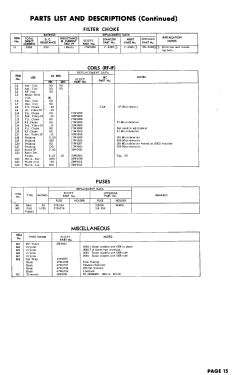

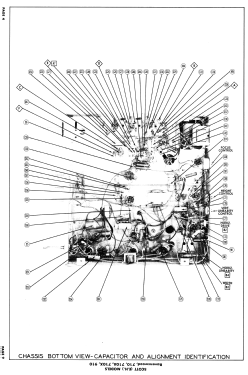

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6CB6 6J6 6AU6 6AU6 6AU6 6H6 6AC7 12AU7 or 6SN7GT 6AU6 6AL5 6SQ7 6V6GT 6J5 6SN7GT 6H6 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16KP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: 710A - Scott; H.H.; Maynard,
- Shape
- Chassis only or for «building in»
- Notes
-
Scott model 710A is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with VHF tuner 2W5023 and picture tube 16KP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 150, folder 11, dated 11-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 181 models, 164 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Scott; H.H.; Maynard, Massachusetts
