• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197727

• Number of Transistors
• 34

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

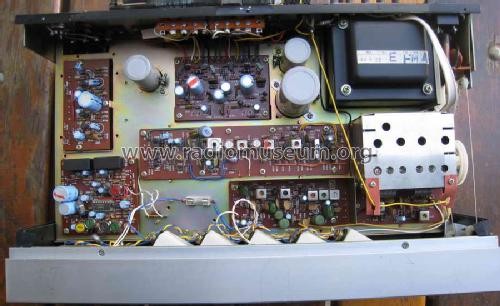

• Model: AM FM stereo receiver R36AS - Scott; H.H.; Maynard,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 270 x 130 mm / 17.7 x 10.6 x 5.1 inch

• Notes
• SCOTT-HH AM FM receiver R36AS est un récepteur de qualité à transistors qui intègre 3 circuits intégrés, deux 703HC (voir µA703) et un 767PC (voir µA767)

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Author
• Model page created by Jacky Parmentier. See "Data change" for further contributors.
