AM-FM tuner 330-B
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328035
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; Hi-Fi-High End products
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: AM-FM tuner 330-B - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 387 x 121 x 305 mm / 15.2 x 4.8 x 12 inch
- Notes
-
Stereo "Simulcast" AM-FM tuner.
Level controls for AM - FM output.
Tape output.
AM antenna selector for connection of the FM dipole to the AM antenna input.

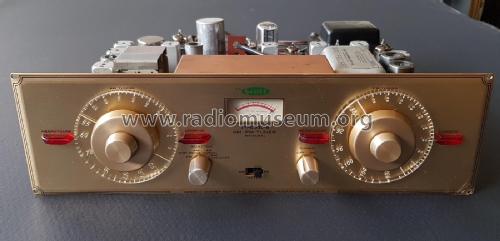

Signal strength meter.
- Author
- Model page created by Mirko Bersani. See "Data change" for further contributors.
