AM/FM Stereo Receiver 380R
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 267159

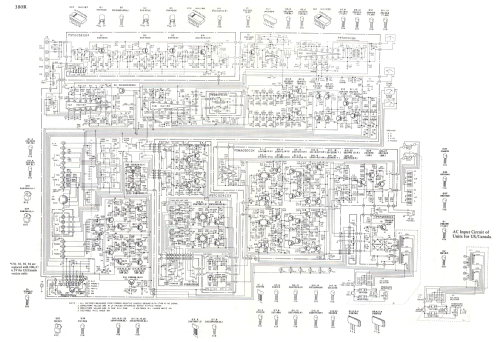

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50/60Hz 105 - 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Stereo Receiver 380R - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 530 x 152 x 330 mm / 20.9 x 6 x 13 inch
- Notes
-
Scott AM/FM Stereo Receiver Model 380R.
Tuning Range: FM 8,57 - 108 MHz, MW 515 - 1620 kHz
Continuous Power output: 85 watts per channel into 8Ω (stereo)
Total harmonic distortion: 0.03%
High FIlter, SubSonic Filter
Bass-& Treble Control, Loudness
Power Requirements:
US/Canada: 117VAC 60Hz - Power Consumption 240 Watts
Europe: 100/117/220/240VAC switchable - Power Cnsumption 630 Watts
- Net weight (2.2 lb = 1 kg)
- 17.3 kg / 38 lb 1.7 oz (38.106 lb)
