AM/FM Tuner 331-B
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293109
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Tuner 331-B - Scott; H.H.; Maynard,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 13 x 5 inch / 381 x 330 x 127 mm
- Notes
-

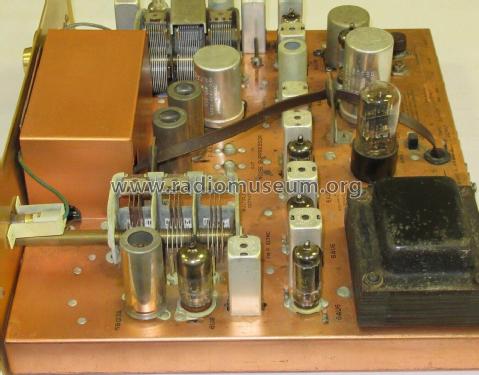

The H.H. Scott model 331-B is a AM and FM mono tuner and mono preamplifier combination.There are 14 tubes and it has separate dials for AM tuning and FM tuning.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (346/14)
- Author
- Model page created by Jon Kummer. See "Data change" for further contributors.
