• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1957

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 272007

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 12AX7 6L6GB 6L6GB 5U4GA

• Main principle
• Audio-Amplification; Hi-Fi-High End products

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 22 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: 99-C - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Notes

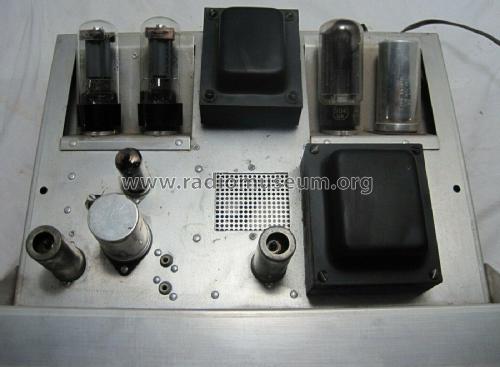

• The Scott 99-C is an AC operated 6 tube mono audio Hi-Fidelity amplifier with built-in preamplifier. Has phonograph preamplifier stage and push-pull output stage.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 370 folder 11 date 9-57)

• Author
• Model page created by Gerrit Gerritsen. See "Data change" for further contributors.
