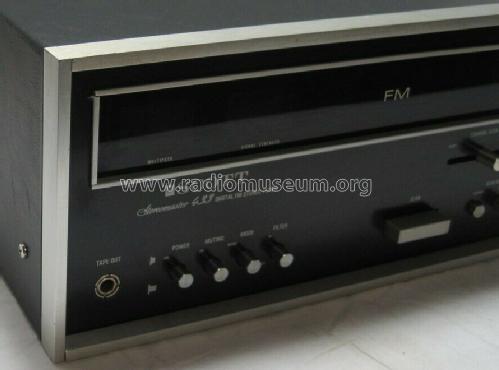

Digital FM Stereo Tuner Stereomaster 433
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336668
- Number of Tubes
- 4
- Valves / Tubes
- Number of Transistors
- 56
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- FM Broadcast Band Only
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Digital FM Stereo Tuner Stereomaster 433 - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 444 x 152 x 381 mm / 17.5 x 6 x 15 inch
- Notes
-
First digital frequency synthesizer tuner, with nixie display; punch cards for station preselect.
33 integrated circuits.
See also the successor T 33 S.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 549.90 USD
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
