• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1951–1954 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 285145

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 12SL7 6J5 6SG7 6SG7 6SQ7 12SL7 6SN7GT 6L6GT 6L6GT 5V4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

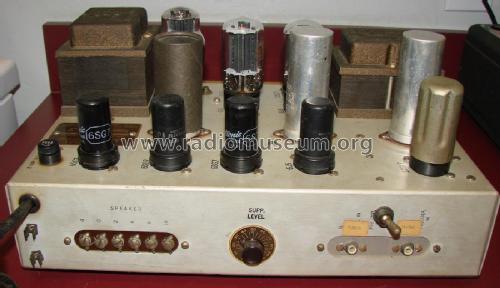

• Model: Dynaural Laboratory Amplifier 210-B - Scott; H.H.; Maynard,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14.5 x 7 x 11 inch / 368 x 178 x 279 mm

• Notes

• Scott model 210-B is an AC operated audio amplifier.

• Literature/Schematics (1)

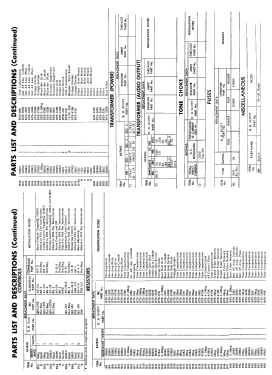

• Photofact Folder, Howard W. SAMS (Set 145, Folder 9, Dated 9-1951)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
