• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275332

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BQ7A 6U8 6AU6 6AU6 6AU6 12AU7 6X4

• Number of Transistors

• Semiconductors
• 1N295 1N295

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

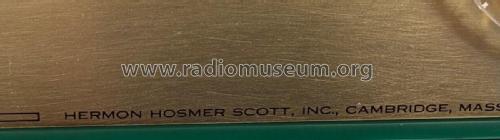

• Model: FM Tuner 311A - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Notes

• FM Superheterodyne Tuner 88MC - 108MC;  mono, with Multiplex output.

• Literature/Schematics (1)

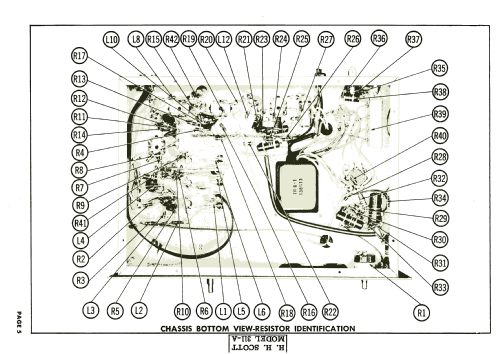

• Photofact Folder, Howard W. SAMS (Set 331 Folder 13 dated 9-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
