Laboratory Power Amplifier 232B
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1955/1956 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 204697
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 32 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Laboratory Power Amplifier 232B - Scott; H.H.; Maynard,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 14.5 x 7.75 x 6.75 inch / 368 x 197 x 171 mm
- Notes

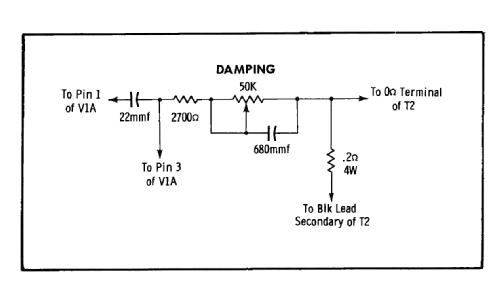

- Mono, with variable Damping.
- Net weight (2.2 lb = 1 kg)
- 22 lb (22 lb 0 oz) / 9.988 kg
- Price in first year of sale
- 100.00 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Production Changes Bulletin 200 daeted 2-58)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
