Dynaural Laboratory Amplifier 210F
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1958
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 165775

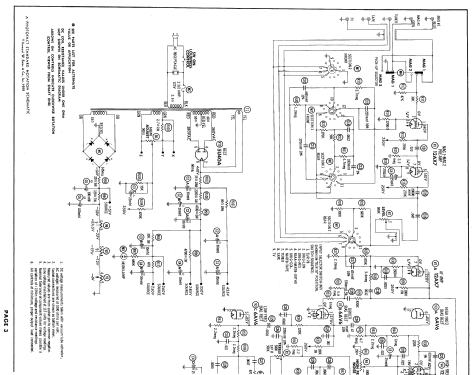

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 36 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Dynaural Laboratory Amplifier 210F - Scott; H.H.; Maynard,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 15.25 x 4.75 x 12.5 inch / 387 x 121 x 318 mm
- Notes
- The H.H. Scott Model 210F is an AC operated 10 Tube Audio Amplifier with Dynamic Noise Suppressor.
- Net weight (2.2 lb = 1 kg)
- 28 lb 0 oz (28 lb) / 12.712 kg
- Price in first year of sale
- 190.00 $
- Mentioned in
- Radio Shack Katalog 1958 - Seite 6
- Literature/Schematics (1)

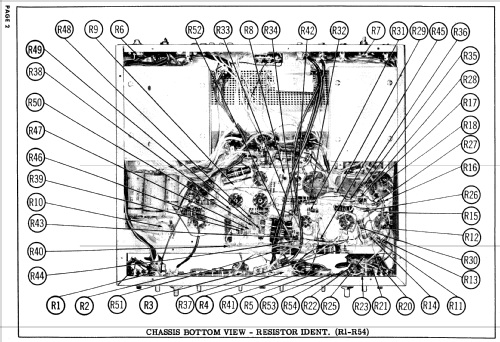

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 11)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
