• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 346866

• Number of Tubes
• 8

• Valves / Tubes
• 6M11 6AU6 6HS6 6AU6 6HU6 6AG11 6AG11 6X4

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

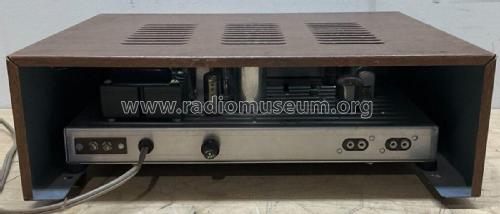

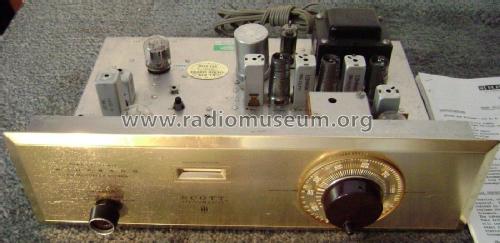

• Model: Scottkit Stereomaster LT-111 - Scott; H.H.; Maynard,

• Shape
• Book-shelf unit.

• Notes

• Scottkit LT-111 is the FM stereo tuner 370B in kit form.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 181 models, 164 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Scott; H.H.; Maynard, Massachusetts
