- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55356

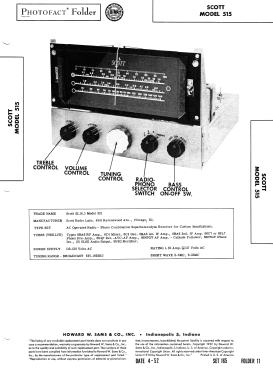

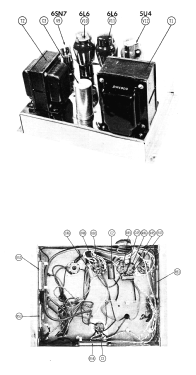

Picture from service manual.

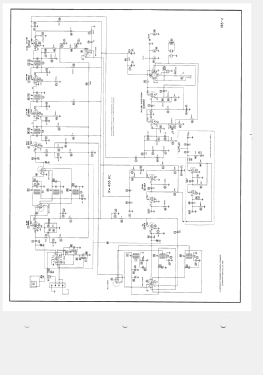

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 20 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 515 - Scott Radio Labs.E.H.,
- Shape
- Chassis only or for «building in»
- Notes
-
Scott model 515 is an AC operated radio-phono combination superheterodyne receiver for custom installations. Tuning Range:
AM: 535 - 1620 kc
SW: 2 - 6 mc
SW1: 6 - 18 mc
- External source of data
- Ernst Erb

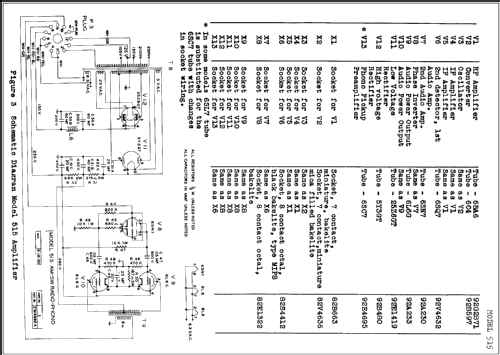

- Circuit diagram reference
- Rider's Perpetual, Volume 22, covering 1951

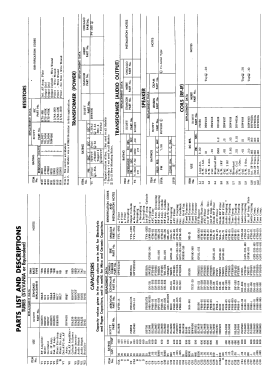

- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 165, folder 11, dated 4-52)
