Chippendale post war CH= 800B ref.18
Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1946/1947
- Category
- Cabinet only
- Radiomuseum.org ID
- 132766
- Number of Tubes
- 24
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chippendale post war CH= 800B [ref.18] - Scott Radio Labs.E.H.,
- Shape
- Console with any shape - in general
- Notes
-

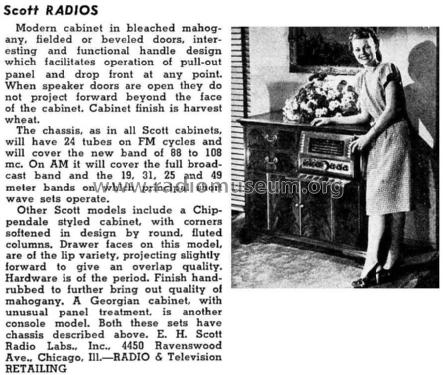

FM 88-108 MHz; BC; 4x SW: 19, 25, 31 and 49 m. Chassis 800B has 24 tubes on FM cycles and will cover the new band of 88 to 108 mc. On AM it will cover the full broadcast band and the 19, 31, 25 and 49 meter bands on which principal short wave sets operate.
- Literature/Schematics (1)
- E.H.Scott Radio Collectors Guide (1925-1946) (ref.#18)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
