Laureate Chrome CHASSIS
Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55368

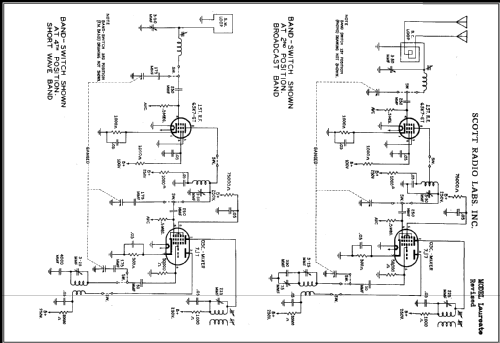

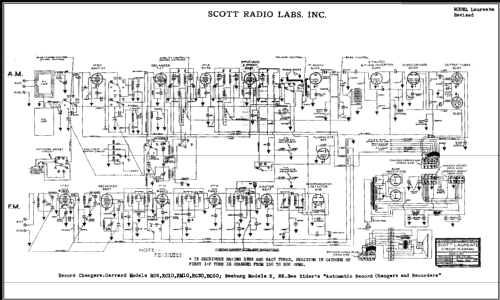

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Laureate Chrome CHASSIS - Scott Radio Labs.E.H.,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 16 x 12 x 13 inch / 406 x 305 x 330 mm
- Notes
- Bands: BC 540-1600 kHz, SW 9.2-15.6 MHz, FM 42-50 MHz.
The 35Z3 tube is often not included in the tube count since it belongs to the speaker crossover network (field supply?).
- Price in first year of sale
- 250.00 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Table Top Radios Vol. 1 Stein 98
- Literature/Schematics (1)
- Pre-War Consoles (Jim Clark: Scott)
- Other Models
-
Here you find 201 models, 126 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Scott Radio Labs.(E.H., Transformer); Chicago (IL)
