• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55369

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6U7 6L7 6J5 6K7 6E5 6K7 6B8 6K7 6J5 6J5 6J5 6V6 6V6 5U4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 15 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: AM Masterpiece Chrome CHASSIS - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Notes

• The name Masterpiece is a continuation after Scott had acquired the assets of McMurdo Silver Co.

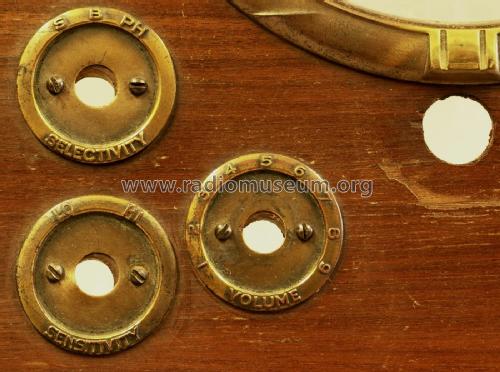

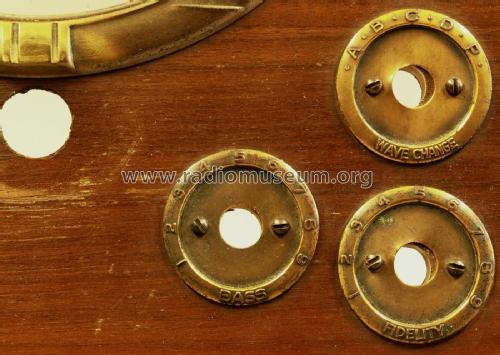

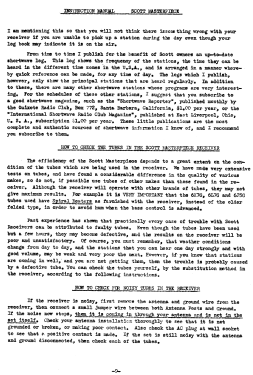

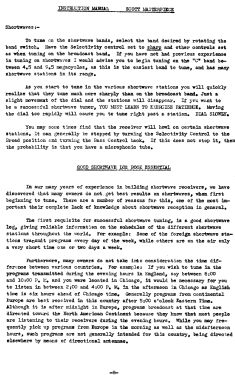

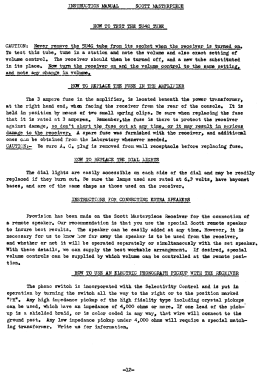

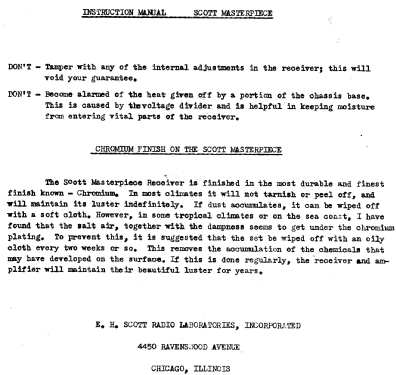

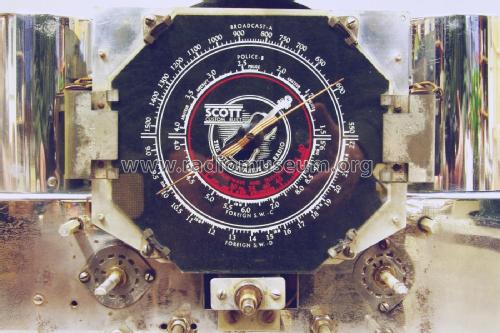

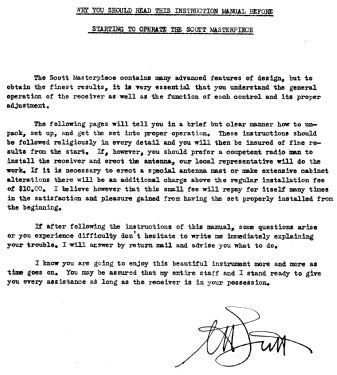

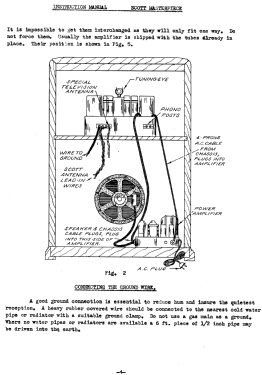

  Note that page 7 of the Instruction Manual indicates that this radio has a "P -  shortwave 3 band  22.2meg - 60meg".  This band is not shown on the picture of the actual dial nor on the picture on the front page of the manual.  It is possible that the manual is for the FM Masterpiece model that has an FM band for early television.


• Price in first year of sale
• 163.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• E.H.Scott Radio Collectors Guide (1925-1946)
