• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1948

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 126380

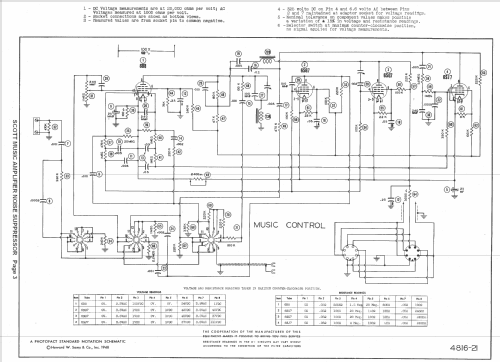

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6B8 6SG7 6SG7 6SJ7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

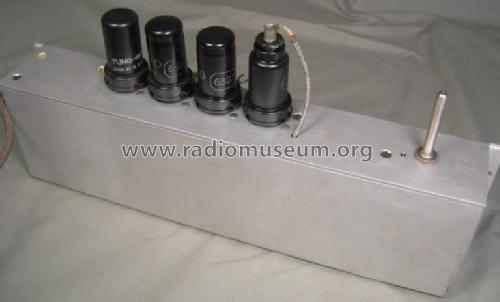

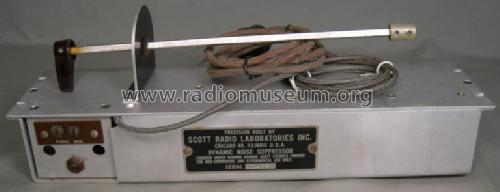

• Model: Music Control - Dynamic Noise Suppressor - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Notes

• Music amplifier, dynamic noise suppressor; mono; used in Scott 800B console.

• Literature/Schematics (1)

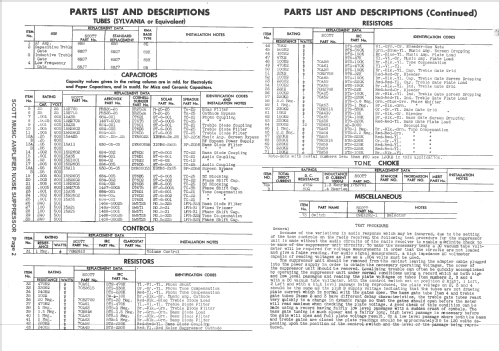

• Photofact Folder, Howard W. SAMS (Set 46 Folder 21 9-1948)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
