Projection Televison Receiver 6T11
Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1948 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 234520

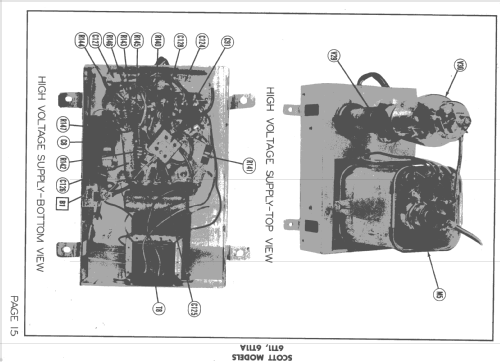

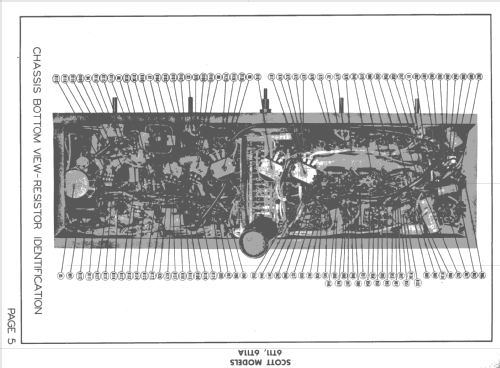

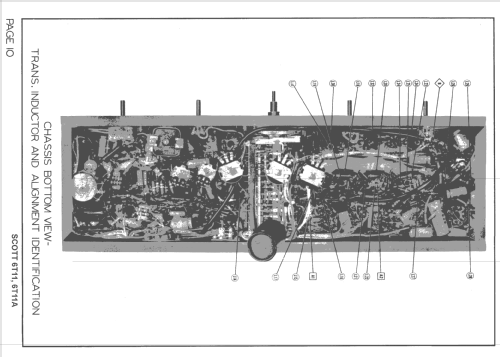

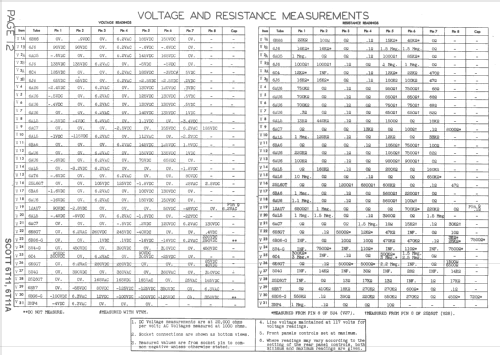

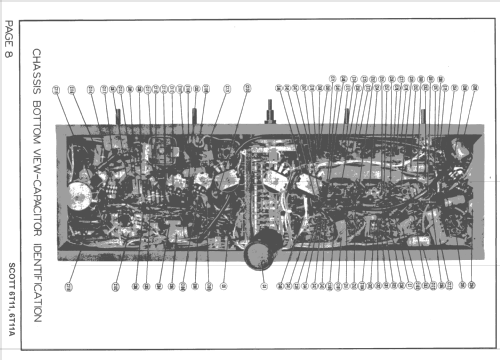

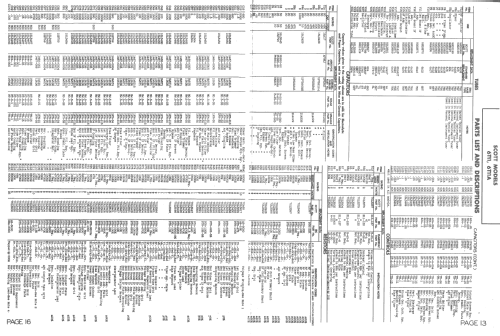

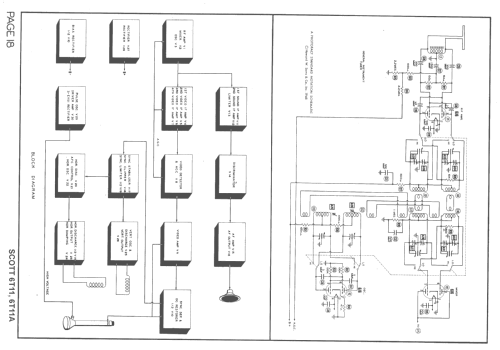

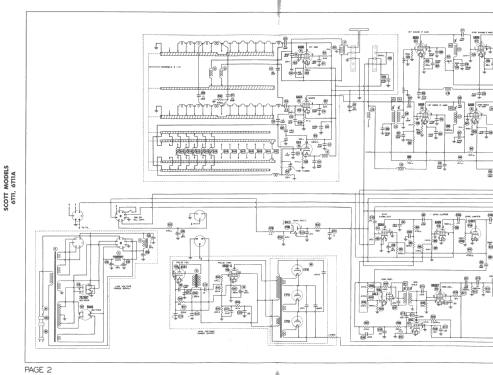

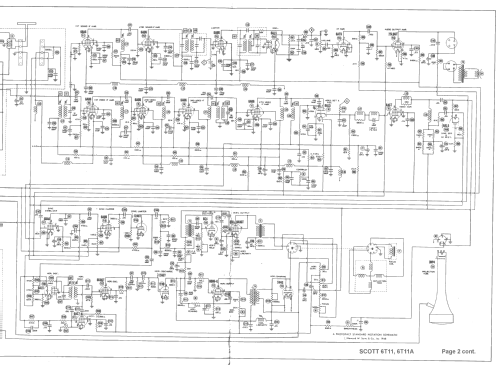

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 31
- Valves / Tubes

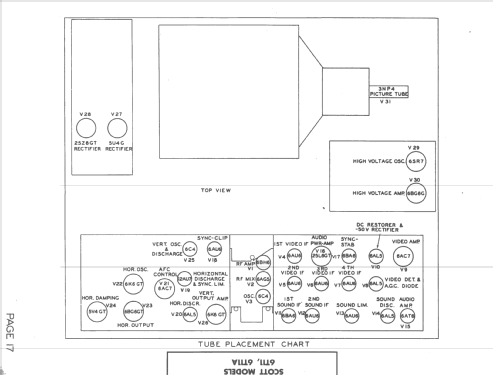

- 6AU6 or 6J6 6AG5 or 6J6 6C4 or 6J6 6AU6 6AU6 6AU6 6AU6 6AL5 6AC7 6AL5 6BA6 6AU6 6AU6 6AL5 6AT6 25L6GT 6BA6 6AU6 12AU7 6AL5 6AC7 6K6GT 6BG6G 5V4 6C4 6K6GT 5U4G 25Z6GT 6SR7 6BG6G 3NP4_CRT
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.2 inch = 13.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Projection Televison Receiver 6T11 - Scott Radio Labs.E.H.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 25 x 14 x 22 inch / 635 x 356 x 559 mm
- Notes
-
Projection Televison Receiver with 10" Norelco Protelgram projection tube. Tuning range US standard channels 2 through 13.
The set can be equipped with different tuners (see alternatives in the tube field)

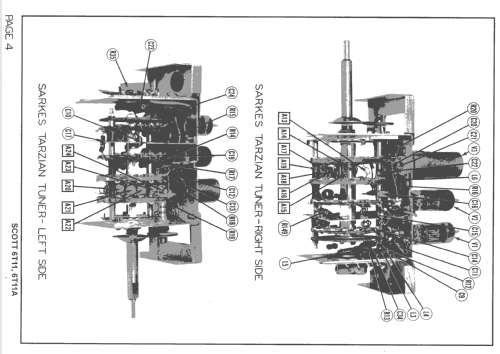

- Sarkes Tarzian tuner (tubes 6AU6, 6AG5, and 6C4)

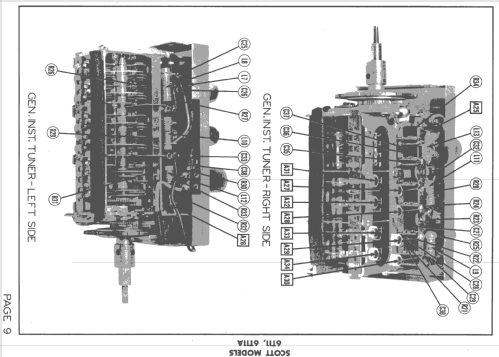

- General Instrument tuner (tubes 6J6, 6J6, 6J6)

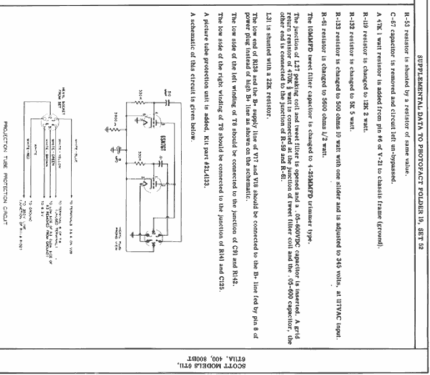

Some models of later production may have the protection unit 2L4133 installed (adds 1 tube 6SN7GT).

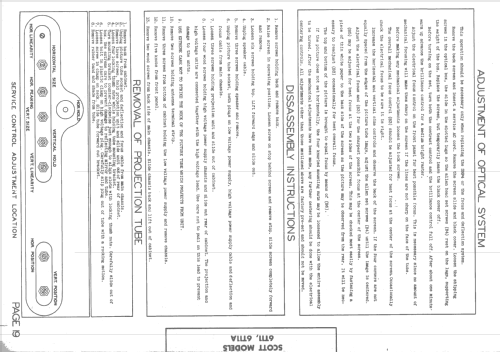

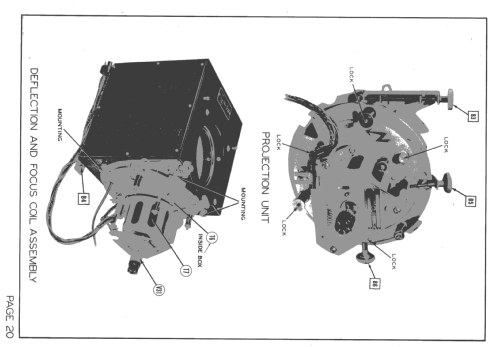

Table model with top lid to fold out the projection screen and mirror, with the screen size being 192 square inches.
Cabinet in mahogany, walnut or blond bisque finish. Complimentary stand available.
Similar to model 400A.
- Mentioned in

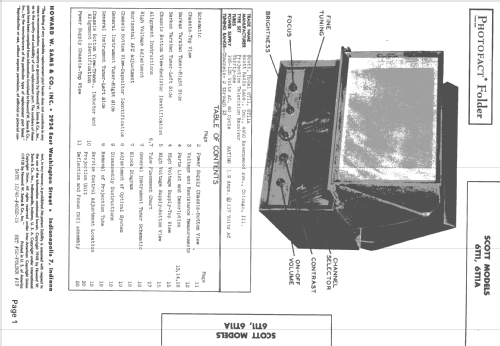

- Photofact Folder, Howard W. SAMS (Date 12/49, Set 52, Folder 19 (#4822-19))
- Literature/Schematics (1)
- Rider's TV, 2-1
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
