• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132603

• Number of Tubes
• 16

• Valves / Tubes
• 6U7G 6L7G 6J5G 6B8G 6E5 6K7G 6K7G 6B8G 6K7G 6J5G 6J5G 6J5G 6V6G 6V6G 5V4G 5V4G

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200 - 250 Volt

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

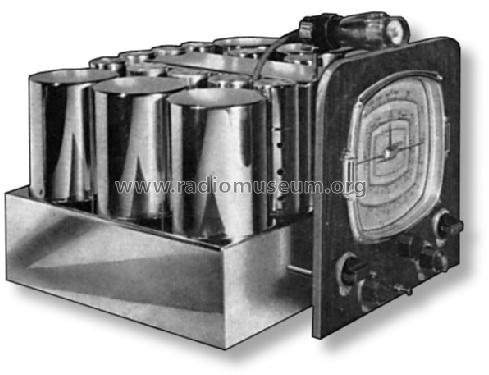

• Model: Sixteen Chrome CHASSIS [english] - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Notes
• Export version with Long wave. Price includes Acousticraft cabinet.

• Price in first year of sale
• 60.00 Guineas

• Source of data
• E.H.Scott Radio Collectors Guide (1925-1946)

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
