• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 171390

• Number of Tubes
• 10

• Valves / Tubes
• 6AQ8 6AU6 6AU6 6AU6 EM84 6C4 6BA6 6BE6 6BA6 6AT6

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

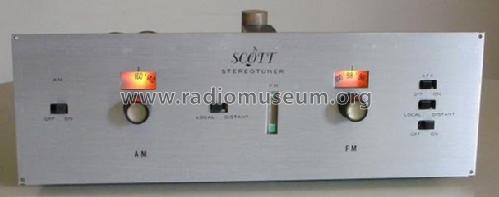

• Model: Stereotuner 105 & 101 - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Notes
• Tuner, mono, with Multiplex output, consisting of 2 units:
  FM chassis Series 105 with power supply, and AM chassis Series 101. Made by Stromberg Carlson. Same as model SR-445.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (531-11)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
