• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55375

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6U7G 6L7G 6K7G 6K7G 6E5 6B8G 6K7G 6F8G 6V6G 6V6G 6J5G 5V4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Power out
• 9 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

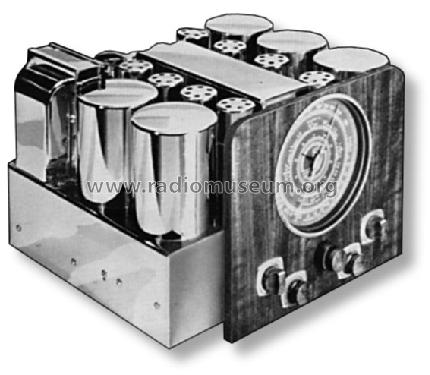

• Model: Super XII Chrome CHASSIS [single chassis] - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 16 x 11 x 14 inch / 406 x 279 x 356 mm

• Notes
• Four Wavebands covering all wavelengths from 13.6 to 540 meters

• Price in first year of sale
• 99.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• E.H.Scott Radio Collectors Guide (1925-1946)
