• Country
• United States of America (USA)

• Manufacturer / Brand
• SD Systems Inc.; Dallas,TX

• Year
• 1978 ?

• Category
• Signal Processing and Computing

• Radiomuseum.org ID
• 344273

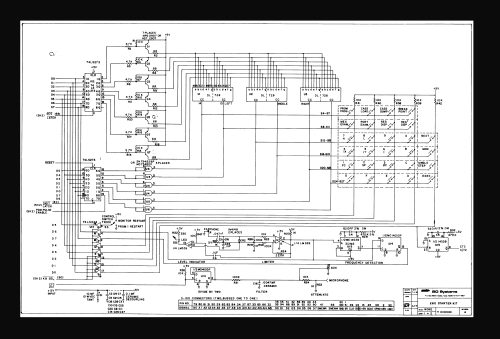

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Powered by external power supply or a main unit. / 5 & 25 Volt

• Material
• Various materials

• from Radiomuseum.org
• Model: Z80 Starter Kit - SD Systems Inc.; Dallas,TX

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 305 x 305 x 52 mm / 12 x 12 x 2 inch

• Notes

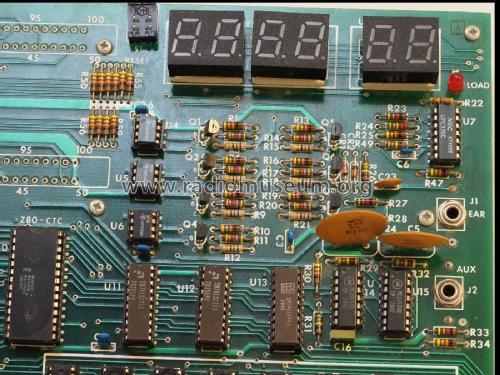

• The Z80 starter kit is a microcomputer with the Zilog Z80 processor. On board is 2 kB of ROM and 1 kB of RAM, with optional 1 kB RAM. On board is also an EPROM-programmer for 2758/2716 EPROM and a wire wrap area and two optional S100 bus connectors. It is also an audio cassette interface with the data rate 300 Baud. The Z80 CPU-clock is 1.9968 MHz.

  25VDC is necessary for the EPROM-programmer.

• Net weight (2.2 lb = 1 kg)
• 0.890 kg / 1 lb 15.4 oz (1.96 lb)

• Author
• Model page created by Lars Nord. See "Data change" for further contributors.
